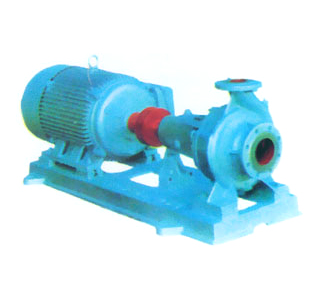

IS型离心清水泵
口径:50-200mm
扬程:5-125m
流量:6.3-400m3/h
该泵型为单级单吸(轴向吸入)离心泵,适用于工业和城市给水,排水,亦可用于农业排灌,供输送清水或物理化学性质类似清水的其它流体之用,介质温度可达80C.我厂有填料密封和机械密封两种轴封形式供选择.
|
IS型离心清水泵 |
|
型号 |
转率 n （r/min） |
流量Q |
扬程H（m） |
效率（％） |
功率（kw） |
必需汽蚀余量 （NPSH)r（m） |
重量（kg） |
|
（m3/h) |
(L/S） |
辅功率Pa |
电机功率 |
|
IS50-32-125
IR |
2900 |
12.5 |
3.47 |
20.0 |
60 |
1.13 |
2.2 |
2.0 |
31 |
|
|
2900 |
11.0 |
3.05 |
17.5 |
59.8 |
0.876 |
1.5 |
2.0 |
|
|
2900 |
9.3 |
2.58 |
16.4 |
54 |
0.77 |
1.1 |
2.0 |
|
|
1450 |
6.30 |
1.74 |
5.0 |
54 |
0.16 |
0.55 |
2.0 |
|
|
2900 |
12.5 |
3.4 |
32.0 |
54 |
2.20 |
3 |
2.0 |
36
|
|
|
2900 |
11.0 |
3.05 |
28.8 |
52.5 |
1.64 |
2.2 |
2.0 |
|
|
2900 |
9.3 |
2.58 |
22.6 |
52 |
1.01 |
1.5 |
2.0 |
|
|
1450 |
6.30 |
1.74 |
8.0 |
48 |
0.29 |
0.55 |
2.0 |
|
|
2900 |
12.5 |
3.47 |
50.0 |
48 |
3.54 |
5.5 |
2.0 |
40
|
|
|
2900 |
11.0 |
3.05 |
44.1 |
47 |
2.76 |
4 |
2.0 |
|
|
2900 |
9.3 |
2.58 |
38.2 |
47 |
2.07 |
3 |
2.0 |
|
|
1450 |
6.30 |
1.74 |
12.5 |
42 |
0.51 |
0.75 |
2.0 |
|
|
2900 |
12.5 |
3.47 |
80.0 |
38.0 |
7.16 |
11 |
2.0 |
68
|
|
|
2900 |
11.0 |
3.05 |
67.7 |
39.5 |
5.13 |
7.5 |
2.0 |
|
|
2900 |
9.3 |
2.58 |
60.4 |
37 |
4.09 |
5.5 |
2.0 |
|
|
1450 |
6.30 |
1.74 |
20.0 |
32 |
1.07 |
1.5 |
2.0 |
|
|
2900 |
25 |
6.94 |
20.0 |
69 |
1.97 |
3 |
2.0 |
33
|
|
|
2900 |
21.9 |
6.08 |
17.5 |
68 |
1.52 |
2.2 |
2.0 |
|
|
2900 |
18.5 |
5.13 |
14.8 |
68 |
1.09 |
1.5 |
2.0 |
|
|
1450 |
12.5 |
3.47 |
5.00 |
64 |
0.27 |
0.55 |
2.0 |
|
|
2900 |
25 |
6.94 |
32 |
65 |
3.35 |
5.5 |
2.0 |
33
|
|
|
2900 |
21.9 |
6.08 |
29 |
62 |
2.80 |
4 |
2.0 |
|
|
2900 |
18.5 |
5.13 |
25.0 |
59.0 |
2.14 |
3 |
2.0 |
|
|
1450 |
12.5 |
3.47 |
8.0 |
60 |
0.45 |
0.75 |
2.0 |
|
|
2900 |
25 |
6.94 |
50 |
60 |
5.67 |
7.5 |
2.0 |
42
|
|
|
2900 |
21.9 |
6.08 |
41.0 |
60 |
3.89 |
5.5 |
2.0 |
|
|
2900 |
18.5 |
5.13 |
32.5 |
60 |
2.44 |
3 |
2.0 |
|
|
1450 |
12.5 |
3.47 |
12.5 |
55 |
0.77 |
1.1 |
2.0 |
46 |
|
|
2900 |
25 |
6.94 |
80 |
50 |
10.89 |
15 |
2.0 |
74
|
|
|
2900 |
21.9 |
6.08 |
70.8 |
52 |
8.07 |
11 |
2.0 | | |
